Description

For more Information
please call
1-800-Belden1

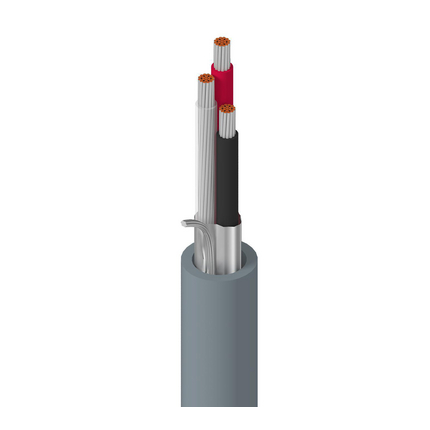

General Description:
20 AWG stranded (7×28) tinned copper conductors, conductors cabled, polyethylene insulation, overall
Beldfoil? shield (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors AWG Stranding Conductor Material
3 20 7×28 TC – Tinned Copper
Total Number of Conductors: 3
Insulation
Insulation Material:
Insulation Material Wall Thickness (in.)
PE – Polyethylene 0.017
Outer Shield
Outer Shield Material:
Outer Shield Trade Name Type Outer Shield Material Coverage (%)
Beldfoil? (Z-Fold?) Tape Aluminum Foil-Polyester Tape 100
Outer Shield Drain Wire AWG:
AWG Stranding Drain Wire Conductor Material
20 7×28 TC – Tinned Copper
Outer Jacket
Outer Jacket Material:
Outer Jacket Material Nom. Wall Thickness (in.)
PVC – Polyvinyl Chloride .033
Overall Cable
Overall Cabling Lay Length & Direction:
Length (in.) Direction Twists (twist/ft)
2.000 Left Hand 6.000
Overall Cabling Color Code Chart:
Number Color
1 Black
2 Red
3 Clear
Overall Nominal Diameter: 0.218 in.
Mechanical Characteristics (Overall)
Operating Temperature Range: -20?C To +60?C
UL Temperature Rating: 60?C (UL AWM Style 2093)
Bulk Cable Weight: 29 lbs/1000 ft.
Max. Recommended Pulling Tension: 45 lbs.
Min. Bend Radius/Minor Axis: 2.250 in.
Page 1 of 3 11-08-2019
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
8772 Multi-Conductor – Audio, Control and Instrumentation Cable
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification: CM
NEC Articles: 800
CEC/C(UL) Specification: CM
AWM Specification: UL Style 2093 (300 V 60?C)
EU Directive 2011/65/EU (ROHS II): Yes
EU CE Mark: Yes
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Flame Test
UL Flame Test: UL1685 UL Loading
CSA Flame Test: FT1
Suitability
Suitability – Indoor: Yes
Electrical Characteristics (Overall)
Nom. Capacitance Conductor to Conductor:
Capacitance (pF/ft)
27
Nom. Capacitance Cond. to Other Conductor & Shield:
Capacitance (pF/ft)
51
Nom. Conductor DC Resistance:
DCR @ 20?C (Ohm/1000 ft)
10.0
Nominal Outer Shield DC Resistance:
DCR @ 20?C (Ohm/1000 ft)
8.9
Max. Operating Voltage – UL:
Voltage
300 V RMS
Max. Recommended Current:
Description Current
10C Temperature Rise 4 Amps per conductor @ 25?C ambient
Put Ups and Colors:
Item # Putup Ship Weight Color Notes Item Desc
8772 060U1000 1,000 FT 31.000 LB CHROME 3 #20 PE FS PVC
8772 060U500 500 FT 16.000 LB CHROME 3 #20 PE FS PVC
8772 0601000 1,000 FT 31.000 LB CHROME C 3 #20 PE FS PVC
8772 060500 500 FT 16.000 LB CHROME C 3 #20 PE FS PVC
8772 0605000 5,000 FT 155.000 LB CHROME 3 #20 PE FS PVC
Page 2 of 3 11-08-2019
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
8772 Multi-Conductor – Audio, Control and Instrumentation Cable
Notes:
C = CRATE REEL PUT-UP.
Revision Number: 3 Revision Date: 08-05-2013
