Description

Product: YE00820
KNX, 2PR 0.8mm Sol BC, PVC ins,OS, PVC jkt, Eca
Product Description

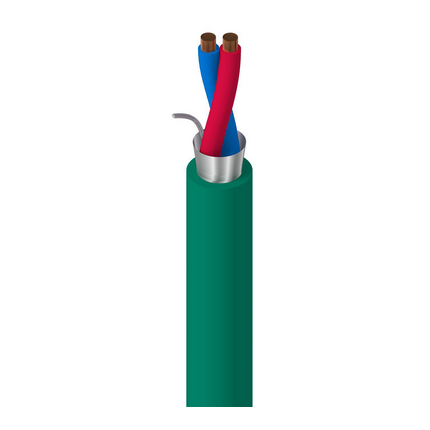

KNX, 2 Pair, 0.8 mm cond diameter, Bare Copper – Solid, PVC insulation, Overall Beldfoil? shielding, PVC jacket , CPR Eca
Technical Specifications
Product Overview
Suitable Applications: KNX, EIB cable for building management
Physical Characteristics (Overall)
Conductor
Stranding Material Cross Section Nominal Diameter No. of Conductors
Solid BC – Bare Copper 0.5 mm? 0.8 mm 4
Conductor Count: 4
Total Number of Pairs: 2
Insulation
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
PVC – Polyvinyl Chloride 1.4 mm 0.05 mm 0.3 mm
Color Chart
Number Color
Quad 1 White & Red & Yellow & Black
Outer Shield
Type Material Material Trade Name Coverage [%] Thickness of Foil Drainwire Material Drainwire Diameter
Tape Bi-Laminate
(Alum+Poly) Beldfoil? 100% 9 ?m TC – Tinned Copper 0.4 mm
Outer Jacket
Material Nominal Diameter Diameter – Tolerance Nominal Wall Thickness
PVC – Polyvinyl Chloride 6.1 mm 0.3 mm 1.2 mm
Construction and Dimensions
Cabling
Description
1 quad covered with a polyester foil
Electrical Characteristics
Conductor DCR
Max. Conductor DCR
37.5 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
50 pF/m
Voltage
Voltage Rating [V]
300 V
Electrical Characteristics Notes: Testvoltage 4 kV, 1 min
Temperature Range
Storage Temp Range: -30?C to +70?C
Operating Temp Range: -20?C To +70?C
Mechanical Characteristics
Min. Bend Radius During Installation: 61 mm
Min Setting Radius: 30 mm
Standards
CPR Euroclass: Eca
Other Specification: KNX REG 109/7253/05
Applicable Environmental and Other Programs
Environmental Space: Indoor – Euroclass Eca
Flammability, LS0H, Toxicity Testing
IEC Flammability: IEC 60332-1-2
Related Part Numbers
Variants
Item # Color Put-Up Type Length EAN
YE00820.00100 Green Reel 100 m 8719605112606
YE00820=00100 Green Reel 100 m 8719605161291
YE00820=K0100 Green Reel 100 m 8719605161253
YE00820.00500 Green Reel 500 m 8719605112637
YE00820=00500 Green Reel 500 m 8719605161321
YE00820=K0500 Green Reel 500 m 8719605161284
YE00820.001000 Green Reel 1,000 m 8719605112613
YE00820=001000 Green Reel 1,000 m 8719605161307
YE00820=K01000 Green Reel 1,000 m 8719605161260
YE00820.001525 Green Reel 1,525 m 8719605112620
YE00820=001525 Green Reel 1,525 m 8719605161314
YE00820=K01525 Green Reel 1,525 m 8719605161277
History
Update and Revision: Revision Number: 0.167 Revision Date: 12-15-2021
